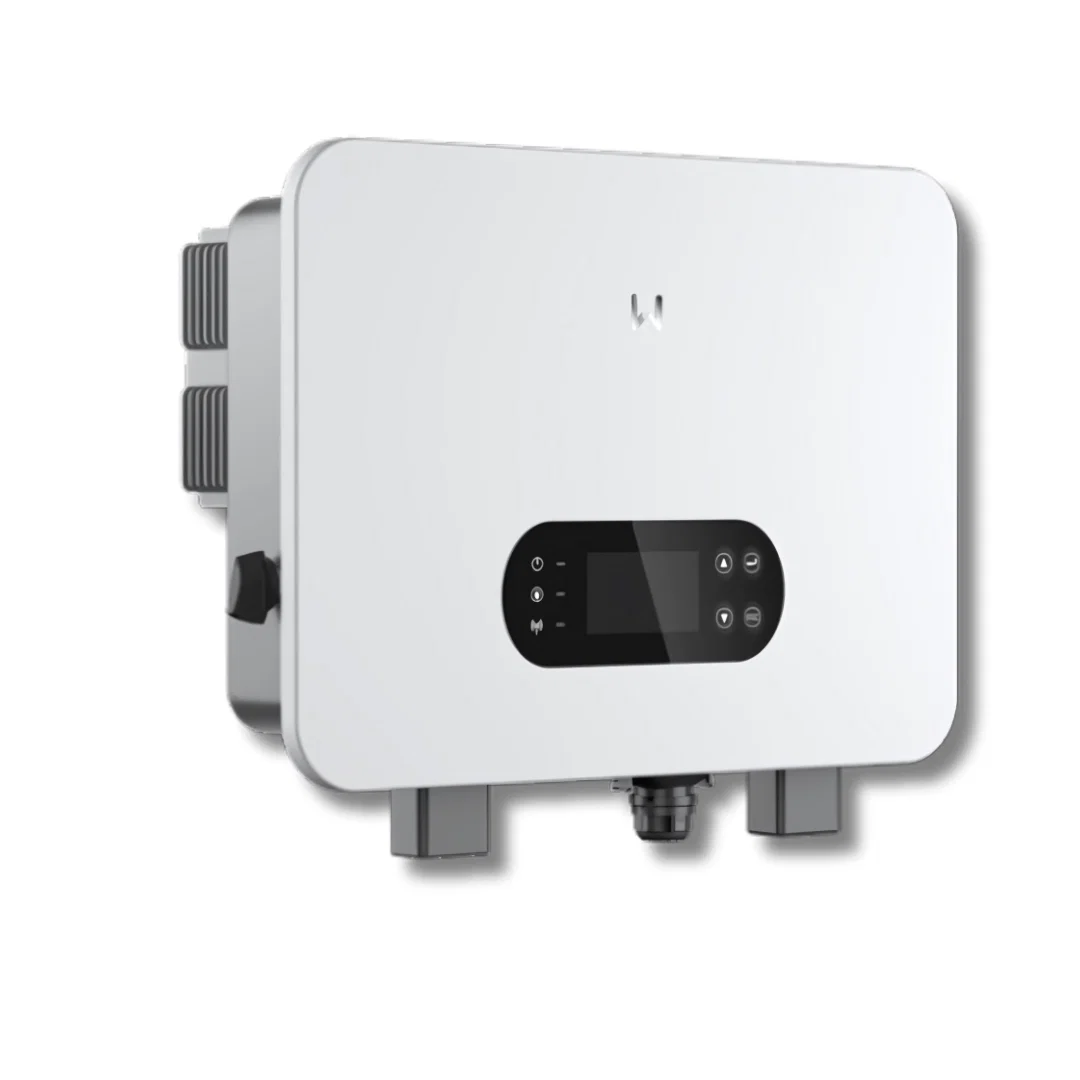

GoodWe ES Uniq GW10K-ES-C10 10kW Hybrid Solar Inverter – Single Phase, IP66

Product Description

The GoodWe ES Uniq Series GW10K-ES-C10 10kW Hybrid Solar Inverter is a high-performance energy solution designed for residential and small commercial solar and energy storage systems.

Featuring a 40–60V battery voltage range, the inverter supports both Li-Ion and lead-acid batteries, providing flexibility for different energy storage requirements. With a 10kW nominal AC output, up to 11kW battery discharging power, and support for up to 20kW PV input, it is engineered for powerful and efficient solar energy management.

The GW10K-ES-C10 delivers up to 97.6% maximum inverter efficiency and an impressive 99.9% MPPT efficiency, helping maximize available solar energy while minimizing conversion losses.

Its rugged IP66-rated enclosure provides excellent protection against dust and water, making it suitable for demanding installation environments. Smart fan cooling helps maintain stable operating temperatures and reliable performance.

Integrated LCD, WiFi, LAN, Bluetooth, RS485, and app-based monitoring provide convenient real-time system monitoring and control. Multiple built-in electrical protection features further enhance system reliability and safety.

Key Features

• 10kW Nominal AC Output – Powerful single-phase hybrid inverter for residential and small commercial applications.
• Up to 20kW PV Input – Supports high solar array capacity for increased energy generation.
• 40–60V Battery Support – Compatible with Li-Ion and lead-acid battery systems.
• 10kW Charging Power – High-capacity battery charging capability.
• 11kW Discharging Power – Strong battery discharge performance for demanding loads.
• 99.9% MPPT Efficiency – Maximizes available energy from connected solar panels.
• 97.6% Maximum Efficiency – Efficient power conversion with reduced energy losses.
• IP66 Protection – Designed for excellent resistance against dust and water.
• Smart Fan Cooling – Helps maintain reliable performance under demanding operating conditions.
• Smart Monitoring – LCD, WiFi, LAN, Bluetooth and app-based system monitoring.
• Advanced Communication – Supports CAN, RS485, Modbus-RTU and Modbus-TCP.
• Comprehensive Protection – Integrated electrical and system protection functions.
• Wall-Mounted Design – Compact installation with a clean and professional appearance.

Technical Specifications

Protection Features

• PV String Current Monitoring – Integrated
• PV Insulation Resistance Detection – Integrated
• Residual Current Monitoring – Integrated
• PV Reverse Polarity Protection – Integrated
• Anti-Islanding Protection – Integrated
• AC Overcurrent Protection – Integrated
• AC Short Circuit Protection – Integrated
• AC Overvoltage Protection – Integrated
• DC Switch – Integrated
• DC Surge Protection – Type III
• AC Surge Protection – Type III
• Remote Shutdown – Integrated
• AFCI – Optional
• Rapid Shutdown – Optional

The GoodWe GW10K-ES-C10 ES Uniq 10kW Hybrid Solar Inverter combines high PV capacity, low-voltage battery compatibility, intelligent monitoring, high efficiency and IP66 protection, making it a versatile choice for modern solar-plus-storage installations.
