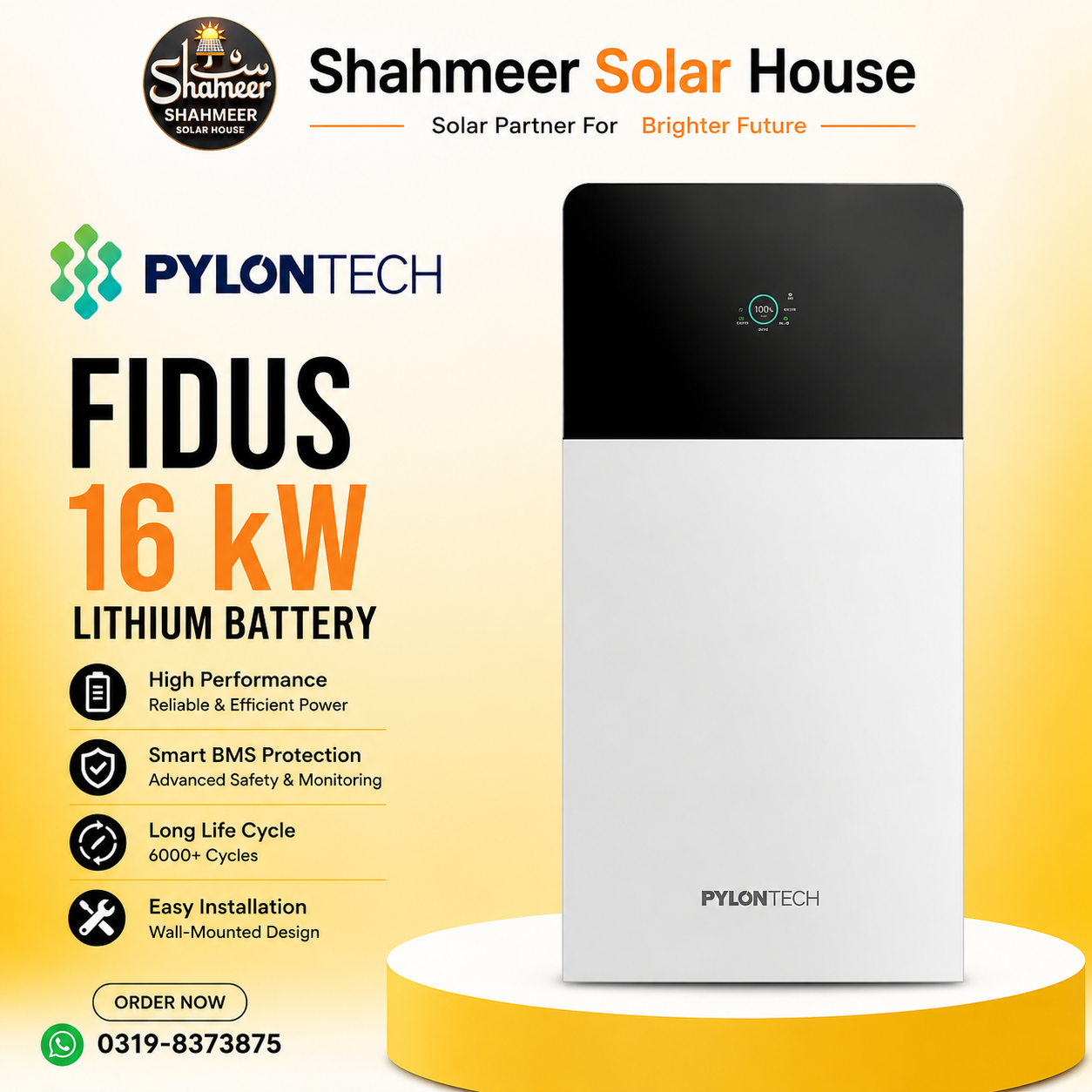

Pylontech Fidus Plus 16kWh Energy Storage Battery | IP65 | Built in WiFi | Display Screen

Name: Pylontech Fidus Plus 16kWh Energy Storage Battery | IP65 | Built in WiFi | Display Screen
Brand: Pylontech
SKU: 8324
Price: 689999 PKR
Availability: InStock

Bank Installment Calculator

Monthly installment plans based on the current product price.

Product Price Rs 0

Installment Charges Rs 0

Installment Price Rs 0

Plan	Monthly EMI	Total Payable
Calculating...

Note:Installment pricing may differ from the regular cash price. An additional 2.5% processing charge applies. EMI figures are estimates and rounded to the nearest rupee.

Original price was: ₨ 700,000.Current price is: ₨ 689,999.

ORDER ON WHATSAPP

Key Features

High Capacity 16kWh Energy Storage: Delivers powerful and consistent backup energy for homes and businesses.
8000+ Life Cycles: Long-term durability with up to 10 years design life at 25°C.
IP65 Rated: Fully protected against dust and water — ideal for indoor & outdoor installations.
Built-in WiFi & Bluetooth: Smart monitoring with display screen for real-time battery status
Flexible System Expansion: Supports up to 20 batteries per group and 6 parallel strings.
Wide Operating Temperature Range: Stable performance from -20°C to 55°C.

Pick Up from Shahmeer Solar House

To pick up today

Free

Courier delivery

We deliver your order safely to your doorstep anywhere in Pakistan.

3-5 Working Days

BUY NOW PAY LATER

Buy Now, Pay Later is available through Bank Alfalah, Faysal Bank, Meezan Bank, HBL, MCB, UBL, Standard Chartered, and other participating bank credit cards. Enjoy easy monthly installments on eligible products. Terms & Conditions apply.

Description

The Pylontech Fidus Plus 16kWh is a high-performance lithium battery designed for residential, commercial, and industrial solar energy storage systems. With IP65 protection, built-in WiFi, and an ultra-long 8000+ cycle life, this battery delivers reliable, safe, and scalable power for on-grid and off-grid applications. Built with advanced LiFePO₄ technology, the Fidus Plus ensures 100% depth of discharge, high efficiency, and long service life, even in harsh environmental conditions.

Key Features

High Capacity 16kWh Energy Storage: Delivers powerful and consistent backup energy for homes and businesses.
8000+ Life Cycles: Long-term durability with up to 10 years design life at 25°C.
IP65 Rated: Fully protected against dust and water — ideal for indoor & outdoor installations.
Built-in WiFi & Bluetooth: Smart monitoring with display screen for real-time battery status
Flexible System Expansion: Supports up to 20 batteries per group and 6 parallel strings.
Wide Operating Temperature Range: Stable performance from -20°C to 55°C.


Parameter	Specification
Nominal Voltage (VDC)	51.2V
Nominal Capacity (Wh)	16,076 Wh
Usable Capacity (Wh)	16,076 Wh
Depth of Discharge (%)	100%
Dimensions (mm)	435 (W) × 240 (D) × 900 (H)
Weight (Kg)	130 kg
Discharge Voltage (VDC)	40 ~ 56.8 V
Charge Voltage (VDC)	56 ~ 56.8 V
Maximum Continuous Charge / Discharge Current (A)	200A / 200A
Peak Charge / Discharge Current (A)	300A @ 15s
Communication	CAN, RS485
Max Batteries per Group	20
Max Parallel Strings	6
Working Temperature (Charging)	0 ~ 55 °C
Working Temperature (Discharging)	-20 ~ 55 °C
Storage Temperature (°C)	-20 ~ 60 °C
Cooling Type	Natural Cooling
Protective Class	Class I
IP Rating	IP65
Anti-Corrosion Rating	C5-M
Humidity Range (RH, Non-condensing)	5% ~ 95%
Maximum Altitude	≤ 4000 m
Certifications	IEC62619, IEC63056, UN38.3, EMC / CE
Design Life (25°C)	10 Years
Cycle Life (25°C)	8000 Cycles
